The MINIPOL SYSTEM enclosure reduces your time and lowers the cost:

  1. Polyester enclosure with glass fibre
  2. Save customized time and offer a drill hole machine to open any shape hole.
  3. Decrease enclosure inventory.
  4. Reduce wiring work time and improve work efficiency.
  5. It’s cheaper and more durable than stainless steel enclosure.
  6. Design convenient operating available for any environment.
Qty :

Feature

The MINI POL system of wall mounting enclosures is made from the most modern synthetic resins. These materials achieve outstanding electrical, mechanical, and chemical characteristics, thus giving the MINIPOL enclosure outstanding safety properties as well as being versatile and lightweight.

The MINI POL system is composed of a range of cabinets to be used in industrial applications, in which protection, security, and easy assembling are required.

The range is composed of 7 sizes of cabinets whose dimensions range from 300 mm. height*250mm. width*140mm. depth, to 800mm. height*600mm. width*300mm. depth.

High resistance to mechanical impacts, similar to metal materials
Self-extinguishing, limit fire propagation
Corrosion resistant to principal chemical agents does not require maintenance or special finishing
Double insulation, giving excellent protection against contacts
IP 65 degrees of protection, with a high degree
Easy to machine, does not require special tools to drill, cut, etc
Lightw eight, therefore easy to install
Resistant to atmospheric agents and insensitive to large outdoor temperature variations keep their properties without any modification

Specifications

Standards of Reference
IEC 60439-1 UNE EN 60439-1 Double insulated boards.
EN 50298 Empty enclosures for LV applications.
EN 60529 General specifications. Degrees of protection for enclosures.

Applications
MINIPOL it is an insulated enclosure system for a complete range of distribution regulation and control applications.
Applied for motor starting and stopping device. Applied for LV protector device.
Applied to control and protect water pump for swimming pool device.
Applied for pressing machine device. Applied to regulate liquid controller device. Applied to control of device.



Quality

The MINIPOL SYSTEM is a new generation of wall-mounted enclosures, made from fiberglass-reinforced polyester. They are the result of the most modern molding techniques, by which each enclosure is a one-piece construction without joins or external welding -a system protected by a Patent- reaching a degree of protection to IP-65/9. The properties of polyester itself are reinforced by a 30% fiberglass mix, obtaining a high resistance and mechanical rigidity -scale 9- with a weight of approx. 1/3rd of that of sheet steel enclosures of equivalent dimensions.

Economy

The MINIPOL SYSTEM was especially developed for storing electrical and/or electronic apparatus in all their applications, where, because of problems of corrosion, polyester enclosures offer greater advantages than the traditional sheet steel types. Now, with the new MINIPOL SYSTEM range, it is possible to use an enclosure with high resistance to corrosion for a comparatively small increase in price to a sheet steel enclosure, and thereby obtain better long-term results. Especially recommended for installation in all environments, inor outdoors, in which dust. humidity, presence of acids. extreme conditions such as snow, ice, tropical climate, etc., make the use of polyester more advantageous.

Performance
Rapid fixture guides using M6 screws for easy profile assembly directly to the enclosure rear.
Moulded wall mounting brackets with plated screws allow wiring clearance of 20 mm between cabinet and wall. Wall mounting facility variable to 45°.
The enclosure can be mounted to allow the door to be opened to the left or right, up or down.
Interchangeable system of locks and keys available. Standard delivery: DIN 3 mm double bar with removable key handle.
Direct fixing to the wall, accessible even with the assembly plate installed.
Carefully studied design to offer maximum accessibility to the interior.
Molded pillars for the fixture of accessories to the door.
Molded visor for protection to IP65.
Hinges are made of zamak5.

Type MINIPOL-325 MINIPOL-43 MINIPOL-44 MINIPOL-54 MINIPOL-64 MINIPOL-65 MINIPOL-86
STANDARD BASIC ENCLOSURE
The enclosure is supplied with all the accessories for direct wall mounting.		 Dimensions
H × W × D (mm) Number of locks/catches with key Weight (Kg)
Reference		 300×250×140
1
1,8
MN321		 400×300×200
2
2,9
MN432		 400×400×200
2
3,9
MN442		 500×400×200
2
4,7
MN542		 600×400×230
2
5,8
MN642		 600×500×230
2
6,8
MN652		 800x600x300
2
MN863
BASIC ENCLOSURE WITH WINDOW IN DOOR
Transparent surface of 3 mm thickness. Fire retardant and resistant to ultraviolet rays.		 Dimensions: transparent surface Reference 200×95
MN321-V		 280×140
MN432-V		 280×220
MN442-V		 380×220
MN542-V		 480×220
MN642-V		 480×320
MN652-V		 680×420
MN863-V

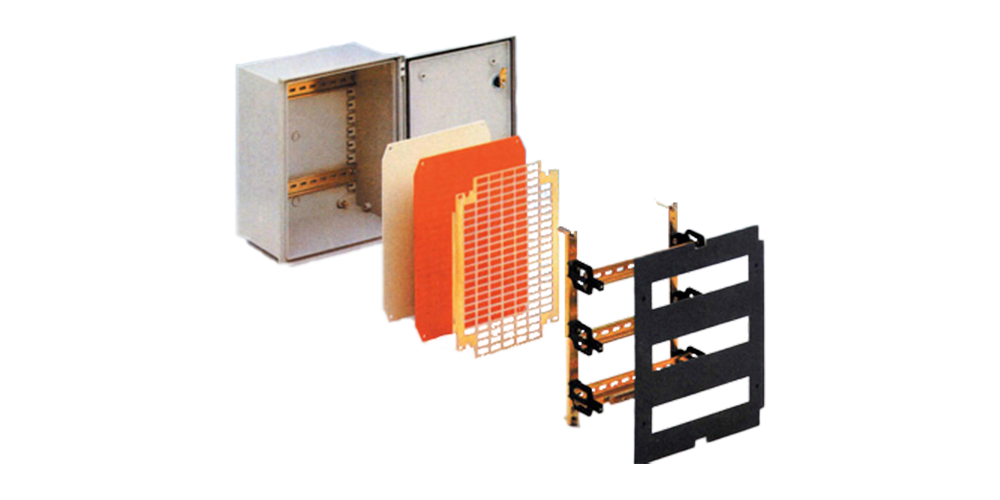

MOUNTING PLATES
Two types of mounting plates, galvanized steel and FRP 		 Dimensions
Polyester:
4mm thick
Metallic:
1.6mm thick 		 268×213
PBP-325
P-325 		 358×260
PBP-43
P-43 		 358×360
PBP-44
P-44 		 458×360
PBP-54
P-54 		 558×360
PBP-64
P-64 		 558×460
PBP-65
P-65 		 754×556
PBP-86
P-86
ADJUSTABLE INTERNAL DOOR
Set of mounting brackets for different depths with an internal door.		 Reference  PID-43 PID-44 PID-54 PID-64 PID-65 PID-86

Locks & Catches

Dimensional

Reference Type A (mm) B C D E F G H I J K L M
06PF320001 MN 321 300 250 140 297 248 215 330 – – 115 220 75 35.5
06PF430001 MN 432 400 300 200 344 338 262 420 158 138 121 281 89.5 53
06PF440001 MN 442 400 400 200 444 338 362 420 158 138 221 281 89.5 53
06PF540001 MN 542 500 400 200 444 438 362 520 158 138 221 381 89.5 53
06PF640001 MN 642 600 400 230 444 538 362 620 187 167 221 481 89.5 53
06PF650001 MN 652 600 500 230 544 538 462 620 187 167 321 481 89.5 53
06PF680001 MN 683 600 800 300 816 558 734 640 257 237 621 481 89.5 53
06PF860001 MN 863 800 600 300 640 734 558 816 257 237 421 681 89.5 53

Features of raw material

Cabinets are hot-pressed in halogen-free, glass-fibre reinforced polyester, and is RAL 7035 grey in color.
This material results in a very high performance cabinet as indicated in the following features.
MP433CC 1000 x 750 x 300
MP434CC 1000 x 750 x 420
