EN UL Series NEMA 4X
HINGED ENCLOSURES
（EN Series_UL）

Ingress protection：NEMA 4X
Metal mounting plates（steel）
304 stainless steel latches, hinge pins and mounting brackets.

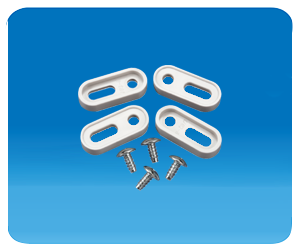

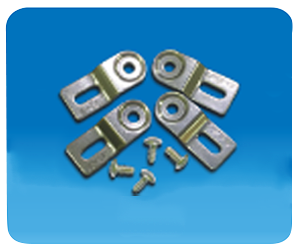

It's easy to fix enclosures with brackets of stainless 304.
We can provide enclosures for harsh environments, such as coast, marine, renewable energy or water treatment on request.
UL & cUL File Number : E539189
Panorama showroom

Qty :

Feature

The hinged electrical enclosures and junction boxes are both UL508A NEMA 4X rated for waterproof and dustproof, it provides easy maintenance of the internal devices. A hinged cover with lockable latches（ENK-50/60）is available on the clasps to enhance equipment safety.

The transparent cover enclosures allow the users to inspect inner components, meters, gauges, visible signals, and indicators directly. Clear plastic cover enclosures with inner swing panels are available. It provides a mounting surface inside the enclosure and users can decide which components or signals are allowed to show and display.

The E-tan plastic electrical enclosures are designed for indoor and outdoor applications and are available in a variety of sizes and accessories. 304 stainless steel metal parts, such as hinge pins and latches, are lightweight, durable, and rust-resistant making it ideal for many applications.

Outdoor weatherproof enclosures and boxes are made from high-quality, durable, UV-resistant material（PC）that is corrosion-resistant. E-tan’s weatherproof plastic enclosures and boxes are suitable for harsh environments, such as coastal, offshore, renewable energy（wind or solar）, or water treatment sites.

Technical Information

Specifications

Material	Polycarbonate（PC）
Application	Weatherproof
Color	Light gray（RAL 7035）	Transparency
Ingress protection	UL508A（NEMA 4X）, IP68
Impact protection	IK08 ~ IK09
Insulation
Temperature	- 40℃ ~ + 80℃（up to 100ºC < 1 HR）
RTI. Elec. / Imp. / Str.	Max. + 125℃ / + 115℃ / + 125℃
Flammability	UL 94 5VA
UV resistance	UL746C（f1）
Salt spray（IEC 60068-2-52）	Pass（1344HR）
Non-toxic products	Halogen free
Gasket material	Polyurethane foam

EN Series Models									Option
Dimensions （Cover included）		PCG		PCT		Mounting Brackets	Mounting Plates		Draw latch with lock
W x H x D （mm）	W x H x D （inch）	Body PC	Cover PC	Body PC	Cover PC		Steel	Plastic
W x H x D （mm）	W x H x D （inch）	Gray cover		Transparent cover			1.6mm（0.06”）	>3.2mm（0.13”）
100 x 150 x 70	3.94 x 5.91 x 2.76	EN-PCG-101507UL		EN-PCT-101507UL		B40.03 or PB30.00	M0813	0813 PL	K–30L
100 x 150 x 85	3.94 x 5.91 x 3.35	EN-PCG-101508UL		EN-PCT-101508UL			M0813	0813 PL
135 x 155 x 85	5.31 x 6.10 x 3.35	EN-PCG-131508UL		EN-PCT-131508UL			M1315	1315 PL
135 x 185 x 85	5.31 x 7.28 x 3.35	EN-PCG-131808UL		EN-PCT-131808UL			M1217	1217 PL
135 x 185 x 100	5.31 x 7.28 x 3.94	EN-PCG-131810UL		EN-PCT-131810UL			M1217	1217 PL
150 x 150 x 90	5.91 x 5.91 x 3.54	EN-PCG-151509UL		EN-PCT-151509UL			M1515	1515 PL
150 x 150 x 120	5.91 x 5.91 x 4.72	EN-PCG-151512UL		EN-PCT-151512UL			M1515	1515 PL
160 x 210 x 100	6.30 x 8.27 x 3.94	EN-PCG-162110UL		EN-PCT-162110UL			M1520	1520 PL
160 x 210 x 130	6.30 x 8.27 x 5.12	EN-PCG-162113UL		EN-PCT-162113UL			M1520	1520 PL
160 x 260 x 100	6.30 x 10.24 x 3.94	EN-PCG-162610UL		EN-PCT-162610UL			M1525	1525 PL
160 x 260 x 130	6.30 x 10.24 x 5.12	EN-PCG-162613UL		EN-PCT-162613UL			M1525	1525 PL
170 x 220 x 110	6.69 x 8.66 x 4.33	EN-PCG-172211UL		EN-PCT-172211UL			M1520	1520 PL
170 x 270 x 110	6.69 x 10.63 x 4.33	EN-PCG-172711UL		EN-PCT-172711UL			M1525	1525 PL
210 x 210 x 100	8.27 x 8.27 x 3.94	EN-PCG-212110UL		EN-PCT-212110UL			M2121	2020 PL
210 x 210 x 130	8.27 x 8.27 x 5.12	EN-PCG-212113UL		EN-PCT-212113UL			M2121	2020 PL
190 x 280 x 100	7.48 x 11.02 x 3.94	EN-PCG-192810UL		EN-PCT-192810UL		B50.03	M1928	1928 PL
190 x 280 x 140	7.48 x 11.02 x 5.51	EN-PCG-192814UL		EN-PCT-192814UL			M1928	1928 PL
200 x 300 x 130	7.87 x 11.81 x 5.12	EN-PCG-203013UL		EN-PCT-203013UL			M2030	2030 PL	ENK-50
200 x 300 x 150	7.87 x 11.81 x 5.91	EN-PCG-203015UL		EN-PCT-203015UL			M2030	2030 PL
200 x 300 x 180	7.87 x 11.81 x 7.09	EN-PCG-203018UL		EN-PCT-203018UL			M2030	2030 PL
250 x 350 x 150	9.84 x 13.78 x 5.91	EN-PCG-253515UL		EN-PCT-253515UL			M2535	2535 PL
250 x 350 x 180	9.84 x 13.78 x 7.09	EN-PCG-253518UL		EN-PCT-253518UL			M2535	2535 PL
280 x 280 x 130	11.02 x 11.02 x 5.12	EN-PCG-282813UL		EN-PCT-282813UL			M2828	2828 PL
280 x 380 x 130	11.02 x 14.96 x 5.12	EN-PCG-283813UL		EN-PCT-283813UL			M2838	2838 PL
286 x 190 x 100	11.26 x 7.48 x 3.94	*EN-PCG-291910UL		*EN-PCT-291910UL			M1928	1928 PL
300 x 200 x 150	11.81 x 7.87 x 5.91	*EN-PCG-302015UL		*EN-PCT-302015UL			M2030	2030 PL
300 x 200 x 180	11.81 x 7.87 x 7.09	*EN-PCG-302018UL		*EN-PCT-302018UL			M2030	2030 PL
300 x 300 x 150	11.81 x 11.81 x 5.91	EN-PCG-303015UL		EN-PCT-303015UL			M3030	3030 PL
300 x 300 x 180	11.81 x 11.81 x 7.09	EN-PCG-303018UL		EN-PCT-303018UL			M3030	3030 PL
300 x 400 x 120	11.81 x 15.75 x 4.72	EN-PCG-304012UL		EN-PCT-304012UL			M3040	3040 PL
300 x 400 x 150	11.81 x 15.75 x 5.91	EN-PCG-304015UL		EN-PCT-304015UL			M3040	3040 PL
300 x 400 x 180	11.81 x 15.75 x 7.09	EN-PCG-304018UL		EN-PCT-304018UL			M3040	3040 PL
400 x 300 x 150	15.75 x 11.81 x 5.91	*EN-PCG-403015UL		*EN-PCT-403015UL			M3040	3040 PL
400 x 300 x 180	15.75 x 11.81 x 7.09	*EN-PCG-403018UL		*EN-PCT-403018UL			M3040	3040 PL
350 x 350 x 150	13.78 x 13.78 x 5.91	EN-PCG-353515UL		EN-PCT-353515UL			M3535	3535 PL
350 x 350 x 180	13.78 x 13.78 x 7.09	EN-PCG-353518UL		EN-PCT-353518UL			M3535	3535 PL
350 x 450 x 120	13.78 x 17.72 x 4.72	EN-PCG-354512UL		EN-PCT-354512UL		B60.07	M3545	3545 PL
350 x 450 x 160	13.78 x 17.72 x 6.30	EN-PCG-354516UL		EN-PCT-354516UL			M3545	3545 PL
350 x 450 x 200	13.78 x 17.72 x 7.87	EN-PCG-354520UL		EN-PCT-354520UL			M3545	3545 PL
400 x 500 x 160	15.75 x 19.69 x 6.30	EN-PCG-405016UL		EN-PCT-405016UL			M4050	4050 PL
400 x 500 x 200	15.75 x 19.69 x 7.87	EN-PCG-405020UL		EN-PCT-405020UL			M4050	4050 PL
400 x 600 x 180	15.75 x 23.62 x 7.09	EN-PCG-406018UL		EN-PCT-406018UL			M4060	4060 PL	ENK-60
400 x 600 x 230	15.75 x 23.62 x 9.06	EN-PCG-406023UL		EN-PCT-406023UL			M4060	4060 PL
500 x 400 x 200	19.69 x 15.75 x 7.87	*EN-PCG-504020UL		*EN-PCT-504020UL			M4050	4050 PL
530 x 630 x 185	20.87 x 24.80 x 7.28	EN-PCG-506018UL		EN-PCT-506018UL		B60.08	M5060	5060 PL
530 x 630 x 255	20.87 x 24.80 x 10.04	EN-PCG-506025UL		EN-PCT-506025UL			M5060	5060 PL
530 x 730 x 185	20.87 x 28.74 x 7.28	EN-PCG-507018UL		EN-PCT-507018UL			M5070	5070 PL
530 x 730 x 255	20.87 x 28.74 x 10.04	EN-PCG-507025UL		EN-PCT-507025UL			M5070	5070 PL

*Horizontal Enclosure

Tolerance：± 1.0mm

Model	W x H x D	W1	W2	W3	W4	H1	H2	H3	H4	D1	D2	Steel Plate		Plastic Plate
M1	M2	M1	M2
EN-☐☐☐-101507UL	100 × 150 × 70	117	78.2	60	0	159	128.6	110	99.5	50	20	65	116	68.5	119
EN-☐☐☐-101508UL	100 × 150 × 85	117	78.2	60	0	159	128.6	110	99.5	65	20	65	116	68.5	119
EN-☐☐☐-131508UL	135 × 155 × 85	152.1	112.7	95	0	163.5	133.1	115	110	65	20	108.8	129	109	129
EN-☐☐☐-131808UL	135 × 185 × 85	152.1	112.7	95	0	193.5	163.1	145	140	65	20	100.9	157.6	109	159
EN-☐☐☐-131810UL	135 × 185 × 100	152.1	112.2	95	0	193.5	162.6	145	140	80	20	100.9	157.6	109	159
EN-☐☐☐-151509UL	150 × 150 × 90	167.1	127.4	115	0	158.5	127.4	115	110	70	20	124.9	124.2	123	123
EN-☐☐☐-151512UL	150 × 150 × 120	167.1	126.3	115	0	158.5	126.3	115	110	100	20	124.9	124.2	123	123
EN-☐☐☐-162110UL	163 × 210 × 100	180.1	140.2	120	0	218.5	187.8	170	160	75	25	136	183	135	185
EN-☐☐☐-162113UL	163 × 210 × 130	180.1	139.1	120	0	218.5	186.7	170	160	105	25	136	183	135	185
EN-☐☐☐ -162610UL	160 × 260 × 100	177.1	137.2	120	0	268.5	237.8	220	210	75	25	134	234	135	235
EN-☐☐☐-162613UL	160 × 260 × 130	177.1	136.1	120	0	268.5	236.7	220	210	105	25	134	234	135	235
EN-☐☐☐-172211UL	173 × 220 × 110	190.1	149.6	132	0	228.5	197.6	182	160	80	30	136	183	135	185
EN-☐☐☐-172711UL	170 × 270 × 110	187.1	146.6	132	0	278.5	247.6	232	210	80	30	134	234	135	235
EN-☐☐☐-212110UL	210 × 210 × 100	227.1	187.2	170	0	218.5	187.8	170	160	75	25	179	179	179	179
EN-☐☐☐-212113UL	210 × 210 × 130	227.1	186.1	170	0	218.5	186.7	170	160	105	25	179	179	179	179
EN-☐☐☐-192810UL	190 × 280 × 100	207.1	167	148	120	288.5	258	238	210	70	30	161	251.5	161	252
EN-☐☐☐-192814UL	190 × 280 × 140	207.1	165.6	148	120	288.5	256.6	238	210	110	30	161	251.5	161	252
EN-☐☐☐-291910UL	286 × 190 × 100	303	263	250	210	198.5	168	153	120	70	30	161	251.5	161	252
EN-☐☐☐-203013UL	200 × 300 × 131	222.5	175.9	152	129	308	275.9	252	226	101	30	166.5	266	166	266
EN-☐☐☐-203015UL	200 × 300 × 151	222.5	175.2	152	129	308	275.2	252	226	121	30	166.5	266	166	266
EN-☐☐☐-203018UL	200 × 300 × 181	222.5	174.2	152	129	308	274.2	252	226	151	30	166.5	266	166	266
EN-☐☐☐-302015UL	300 × 200 × 150	320	274	252	226	208	176	152	129	120	30	166.5	266	166	266
EN-☐☐☐-302018UL	300 × 200 × 180	320	273	252	226	208	175	152	129	150	30	166.5	266	166	266
EN-☐☐☐-253515UL	250 × 350 × 150	272.5	225.3	202	180	358	325.3	302	271	120	30	216	315	216	315
EN-☐☐☐-253518UL	250 × 350 × 180	272.5	223.2	202	180	358	324.2	302	271	150	30	216	315	216	315
EN-☐☐☐-282813UL	280 × 280 × 130	302.5	255.5	238	210	288	255.5	238	210	100	30	251	251.5	249	249
EN-☐☐☐-283813UL	280 × 380 × 130	302.5	355.9	238	210	388	355.9	338	310	100	30	252	353.2	248	347.5
EN-☐☐☐-303015UL	300 × 300 × 150	322.5	275.3	252	219	308	275.3	252	219	120	30	262	262	262	262
EN-☐☐☐-303018UL	300 × 300 × 180	322.5	273.2	252	219	308	274.2	252	219	150	30	262	262	262	262
EN-☐☐☐-304012UL	300 × 400 × 120	324.7	275.3	252	223.4	408	376.1	352	323.4	89.5	31	265.2	362.3	268	368
EN-☐☐☐-304015UL	300 × 400 × 150	324.7	275	252	223.4	408	375	352	323.4	119.5	31	265.2	362.3	268	368
EN-☐☐☐-304018UL	300 × 400 × 180	324.7	274	252	223.4	408	374	352	323.4	149.5	31	265.2	362.3	268	368
EN-☐☐☐-403015UL	408 × 308 × 150	430.5	374.3	352	322	316.4	274.3	252	227	120	30	265.2	362.3	268	368
EN-☐☐☐-403018UL	408 × 308 × 180	430.5	373.2	352	322	317.2	271	252	227	150	30	265.2	362.3	268	368
EN-☐☐☐-353515UL	350 × 350 × 150	372.5	324.3	302	270	358	324.3	302	270	120	30	313.5	313.5	314	314
EN-☐☐☐-353518UL	350 × 350 × 180	372.5	323.2	302	270	358	323.2	302	270	150	30	313.5	313.5	314	314
EN-☐☐☐-354512UL	350 × 450 × 120	376.5	323.8	300	274	461	425.3	400	365	90	30	305.7	406.3	306	407
EN-☐☐☐-354516UL	350 × 450 × 160	376.5	323.9	300	274	461	423.9	400	365	130	30	305.7	406.3	306	407
EN-☐☐☐-354520UL	350 ×450 × 200	376.5	320.5	300	274	461	422.5	400	365	170	30	305.7	406.3	306	407
EN-☐☐☐-405016UL	400 × 500 × 160	427.5	371.9	352	328	511	473.9	452	428	130	30	362.5	463	358	458
EN-☐☐☐-405020UL	400 × 500 × 200	427.5	370.5	352	328	511	472.5	452	428	170	30	362.5	463	358	458
EN-☐☐☐-504020UL	516 × 416 × 200	542.5	472.5	452	428	427	372.5	352	328	170	30	362.5	463	358	458
EN-☐☐☐-406018UL	415 × 615 × 180	442.5	371.9	352	328	626	571.9	552	525	150	30	350.7	550.5	358	556
EN-☐☐☐-406023UL	415 × 615 × 230	442.5	370.1	352	328	626	570.1	552	525	200	30	350.7	550.5	358	556
EN-☐☐☐-506018UL	530 × 630 × 185	557.5	486.8	462	426	641	586.8	562	526	150	35	469.6	551.5	460	560
EN-☐☐☐-506025UL	530 × 630 × 255	557.5	484.4	462	426	641	584.4	562	526	220	35	469.6	551.5	460	560
EN-☐☐☐-507018UL	530 × 730 × 185	557.5	486.9	462	426	741	686.9	662	626	150	35	469.6	652	460	660
EN-☐☐☐-507025UL	530 × 730 × 255	557.5	484.4	462	426	741	684.4	662	626	220	35	469.6	652	460	660
