VENTILATION

VH Series
VENTILATOR

  • Easy to install
  • High degree of protection, IP54 / IP66
  • A high protection level from humidity and dust
Qty :

Specifications

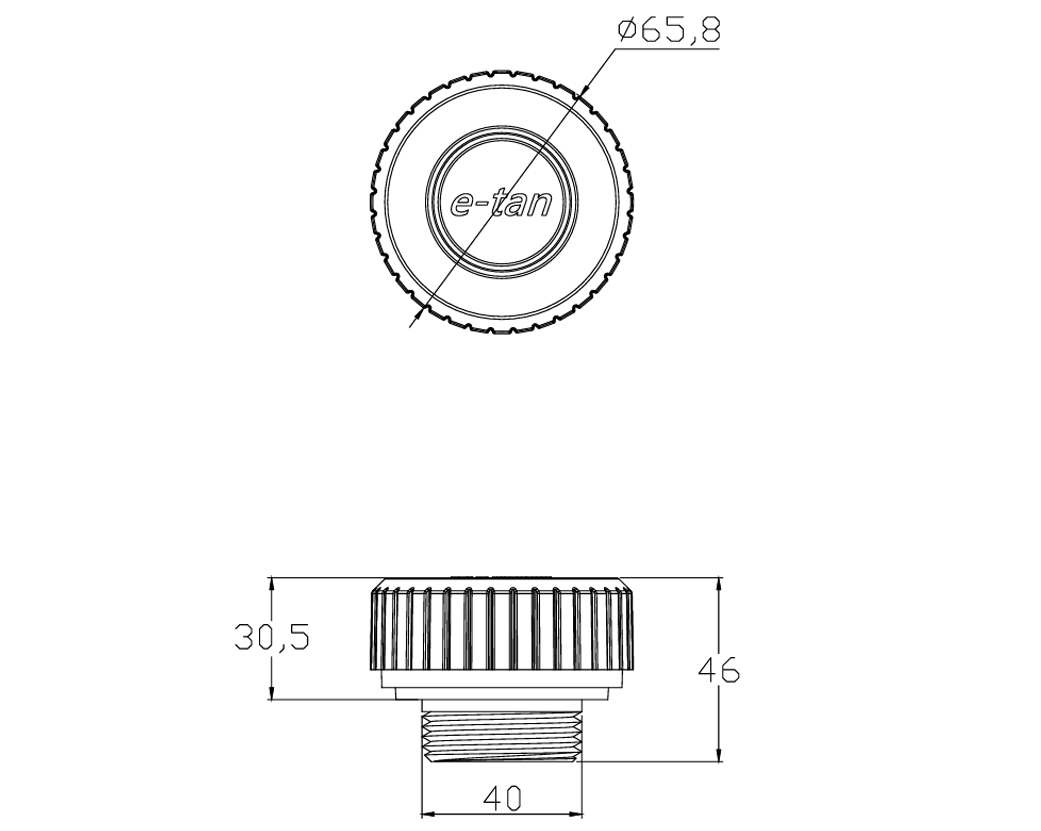

VH-84
  1. Degree of protection : IP55
  2. Mounting : PG29-Ø37mm
  3. Depth in enclosure : 15mm
  4. Material : PC, UL94 V-0
  5. Air permeability : 7cm²
  6. Dimension : Ø65.5×30.5mm
  7. Fiting position : Variable
  8. Operating / Storage temperature : -45 ~+70℃ ( -49 ~+158℉ )
VH-284
  1. Degree of protection : IP66
  2. Mounting : Ø40.5mm
  3. Depth in enclosure : 16mm
  4. Material : PC, UL94 V-0
  5. Air permeability : 1200 l/h at pressure min.70 mbar
  6. Dimension : Ø65.5×37mm
  7. Fiting position: Variable
  8. Operating / Storage temperature : -45 ~+70℃( -49 ~+158℉ )
VH-40
  1. Degree of protection : IP54
  2. Mounting: Ø17.5mm
  3. Thread length : 13mm
  4. Material : PC , UL94 V-0
  5. Dimension: 26×42mm
  6. Fiting position: Downward
  7. Operating / Storage temperature : -40℃ ~+85℃
VH-50
  1. Degree of protection : IP54
  2. Mounting: Ø34.5mm
  3. Thread length : 12mm
  4. Material : PC , UL94 V-0
  5. Dimension: 50×56mm
  6. Fiting position: Downward
  7. Operating / Storage temperature : -40℃ ~+85℃
VH-60
  1. Degree of protection : IP54
  2. Mounting: Ø62.5mm
  3. Thread length : 12mm
  4. Material : PC , UL94 V-0
  5. Dimension : 75×86mm
  6. Fiting position : Downward
  7. Operating / Storage temperature : -40℃ ~+85℃
VH-100
  1. Degree of protection : IP54
  2. Mounting : Ø120mm
  3. Material : PC , UL94 V-0
  4. Dimension : 137 × 151mm
  5. Fiting position: Downward
  6. Operating / Storage temperature : -40℃~+85℃
  7. Fans : 110 / 220V, 80 × 80 mm (optional)
  8. Built-in filter
Option: Fan
Model Voltage
(V)
Frequency
(Hz)
Current
(A)
Power
(W)
Speed
(RPM)
Air Flow
(CFM)
P1082HS 115 50/60 0.14/0.16 3.5/4.5 3300/3700 42/48
P2082HS 230 50/60 0.14/0.17 4/5.5 3700/4100 42/48
